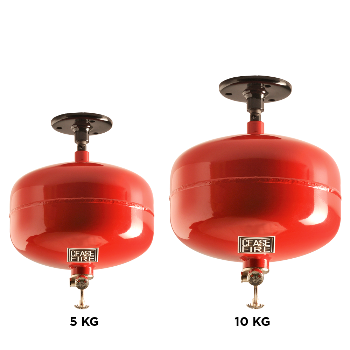

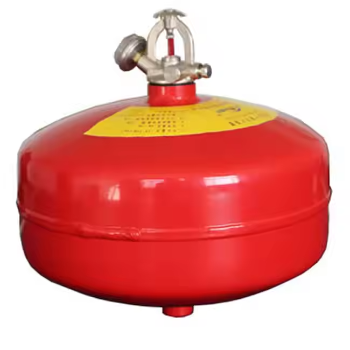

Modular Type Fire Extinguisher 5kg Auto Release

Modular fire extinguishers are fitted with quartzoid bulb type sprinkler bulbs When the ambient temperature around the sprinkler bulb reaches around 68° C (57° C to 1070 C), the bulb breaks and the extinguishant is discharged automatically.


₹ 2250 0% off
₹ 0
Buy Now

This modular type fire extinguisher 5 kg cap is an automatic, ceiling-mounted unit designed for unmanned or critical areas where quick action is vital. Equipped with a quartzoid bulb sprinkler, it activates when ambient temperature crosses its rated limit, releasing the extinguishing agent instantly to control fire at source. It’s ideal for electrical panels, UPS rooms, server racks, generator rooms, paint or fuel storage and small warehouses. The robust construction, reliable heat sensing and automatic operation reduce dependency on human intervention during emergencies. Easy to install and low on maintenance, it offers dependable 24x7 protection for commercial, industrial and residential applications at SHOP NO.76 SANT TUKARAM NAGAR, PIMPRI, Maharashtra, 411018.

Automatic activation through reliable quartzoid bulb sprinkler system
Ideal for unmanned areas needing continuous fire protection
Fast response minimizes fire spread and potential damage
Ceiling-mounted design saves floor space and access routes
Low maintenance with no complex operating mechanisms
Suitable for electrical, server and equipment protection zones

Mount the modular fire extinguisher securely on the ceiling above the risk area using the supplied brackets and hardware. Ensure the quartzoid bulb faces downward and is unobstructed. Keep at recommended height and coverage radius. Do not tamper with the bulb or cap. Conduct periodic visual inspections for corrosion, leakage or damage and schedule professional servicing as per manufacturer guidelines and local fire safety regulations.

A moduler type fire extinguisher 5 kg cap is a ceiling-mounted, automatic fire extinguisher that uses a quartzoid bulb. When surrounding temperature reaches its rated point, the bulb bursts and releases the extinguishing agent to control fire without human intervention, ideal for panels, server rooms and unmanned areas.

A modular type fire extinguisher should be installed on the ceiling directly above high-risk zones such as electrical panels, server racks, UPS rooms, DG sets, fuel or paint storage and cable trenches. It must cover the designated area as per manufacturer guidelines and local fire safety norms for effective automatic protection.

The quartzoid bulb in modular extinguishers is filled with a heat-sensitive liquid. When ambient temperature around the bulb reaches its rated range, the liquid expands, shattering the glass. This opens the valve, allowing the stored extinguishing agent to discharge automatically over the fire-affected area, providing quick, reliable fire suppression.

Yes, modular type fire extinguishers require regular servicing to ensure reliability. Periodic inspections should check pressure, mounting, corrosion, leakage and bulb condition. Annual professional maintenance, refilling as required and hydrostatic testing at prescribed intervals help maintain compliance with fire safety standards and ensure proper operation during an emergency.

A 5 kg modular fire extinguisher can protect small to medium risk areas, such as individual electrical panels, single server racks or compact rooms. Adequacy depends on room size, fire load and hazard category. Larger or multiple rooms may need several units or a designed system based on a professional fire risk assessment.
