Max. DC Input Power(W) = 12800W Max PV Input Voltage (V） = 500V Start-up Voltage（V） = 125V MPPT Voltage Range（V） = 150V-425V Rated PV Input Voltage(V) = 370V eak Power (off grid) = 2 times of rated power, 10S AC Output Rated Current(A) = 36.4/34.8A Max. AC Current(A) = 40/38.3 Max. Continuous AC Passthrough(A) = 50A Weight (kg) = 24.9 Size (mm) = 330×580×232 (Excluding Connectors and Brackets) Protection Degree = IP65 Installation Style = Well-mounted Warranty = 5 Years

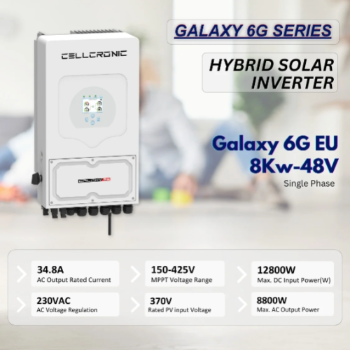

Galaxy 6G is a 6th generation inverter technology. It comes with loaded accessories like Battery wire, ACDC box, SPD, DC Voltage Protection Device, CT sensor, Battery temperature sensor, and communication cables. It supports high PV voltage (150~425vdc) for easy PV installation. We can connect 16 inverters in parallel for a big operation.
*AC couple to retrofifit existing solar system
*Works as On- grid and Off- Grid mode
*Inverter Designed on 48V DC power and compatible with all Lead- *Acid & Lithium Iron Phosphate batteries.
*MPPT Voltage Range 150V-425VDC
*Intelligent IOT based Wi-Fi system,
*Dual Output Inverter for normal and heavy load
*Inverter weight 24.9kg
*Inverter Dimension 330Wx580Hx232D
*20 years design life.
