Max. DC Input Power(W) = 8000W PV input Voltage (V) = 100-480Vdc MPPT Voltage Range (V) = 100-385Vdc Max. Solar Charge Current = 110A Start-up Voltage (V) = 120Vdc MPPT Efficiency(PV to AC) = 99.00% Weight (kg) = 14.5kg Size (mm) = W330mm*H504mm*D135mm

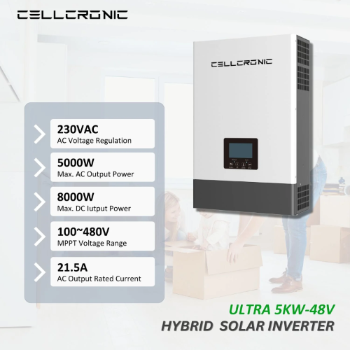

The new Ultra inverter comes with a high-power output of 5000W with a compact design. It is compatible with all types of lithium and Lead acid batteries. We can adjust low to high cut-off voltage with the adjustable charging current in this inverter. It has a huge MPPT of 8000W capacity with a high PV range (100~480V).
Key Specifications & Features
AC couple to retrofifit existing solar system

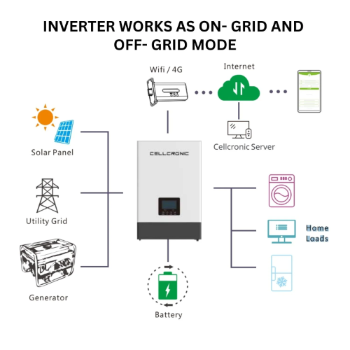

Works as On- grid and Off- Grid mode
Inverter Designed on 48V DC power and compatible with all Lead- Acid & Lithium Iron Phosphate batteries.
MPPT Voltage Range 100V-480VDC
Intelligent IOT based Wi-Fi system,
Single Output Inverter
Inverter weight 14kg
Inverter Dimension 330Wx504x135D
20 years design life.
